Guhring

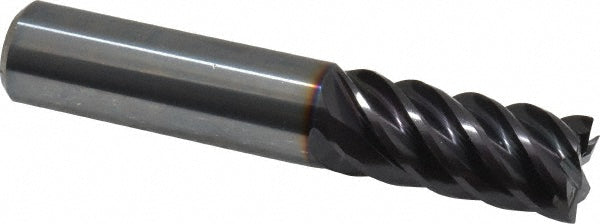

5/8" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031150158700
MFR# 9031150158700Series 3115
$269.56List $339.71
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes6
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9031150158700 is a 5/8 6-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series 3115.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle44; 45; 46
Length of cut in1-1/4
Length typeRegular
Material gradeProprietary
Mill diameter in5/8
Mill diameter toleranceh10
Number of flutes6
Overall length in3-1/2
Secondary workpiece materialHard Material
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
