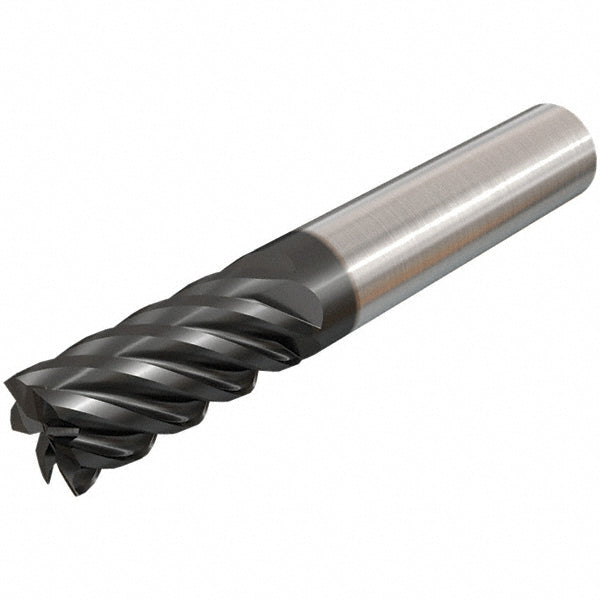

5/8" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5621002

Iscar

5/8" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5621002

MFR# 5621002

$251.19List $321.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes6
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5621002 is a 5/8 6-flute Solid Carbide (Submicron Grain) square end mill. 1-1/4 length of cut, 3-1/2 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeSubmicron Grain
Mill diameter in5/8
Number of flutes6
Overall length in3-1/2
Shank diameter in5/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
