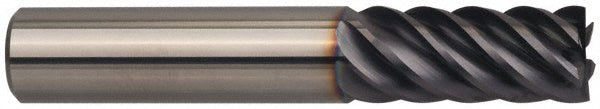

1" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031150254000

MFR# 9031150254000Series 3115

$510.61List $654.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes6

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031150254000 is a 1 6-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 1-1/2 length of cut, 4 overall length. Series 3115.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle44; 45; 46

Length of cut in1-1/2

Length typeRegular

Material gradeProprietary

Mill diameter in1

Mill diameter toleranceh10

Number of flutes6

Overall length in4

Secondary workpiece materialHard Material

Shank diameter in1

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
