Kennametal

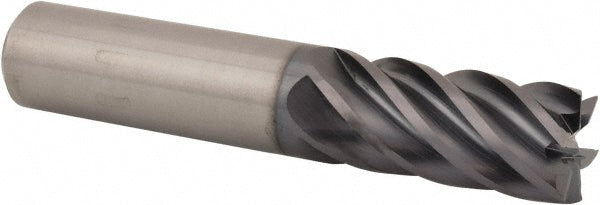

1" 6-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 5351933

MFR# 5351933Series UJDE

$784.27List $1,005.85 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5351933 is a 1 6-flute Solid Carbide (KCSM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 1-3/4 length of cut, 4-1/2 overall length. Series UJDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-3/4

Length of cut range1.5000 - 2.0000

Length typeStub

Material gradeKCSM15

Mill diameter in1

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes6

Overall length in4-1/2

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials

Shank diameter in1

Shank diameter tolerance+0.000/+0.00051 in

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
