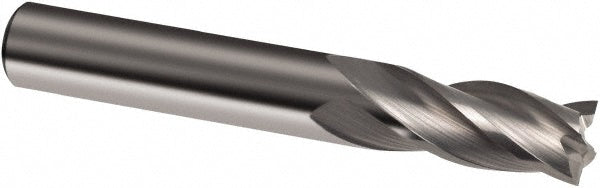

9/64" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031500035700

Guhring

9/64" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031500035700

MFR# 9031500035700Series 3150

$26.14List $33.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide

Description

The Guhring 9031500035700 is a 9/64 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1/2 length of cut, 2 overall length. Series 3150.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeProprietary
Mill diameter in9/64
Number of flutes4
Overall length in2
Shank diameter in3/16
Single or double endSingle
Variable helixNo
Variable indexNo
