Guhring

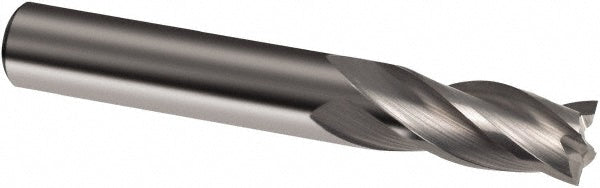

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031500047600
MFR# 9031500047600Series 3150
$24.22List $31.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
Description
The Guhring 9031500047600 is a 3/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. 5/8 length of cut, 2 overall length. Series 3150.
Specifications
CentercuttingYes
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeProprietary
Maximum helix angle30
Mill diameter in3/16
Mill diameter toleranceh10
Number of flutes4
Overall length in2
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
