9/32" 4-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031650071400

Guhring

9/32" 4-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031650071400

MFR# 9031650071400Series 3165

$59.81List $76.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide
CoatingFIREX

Description

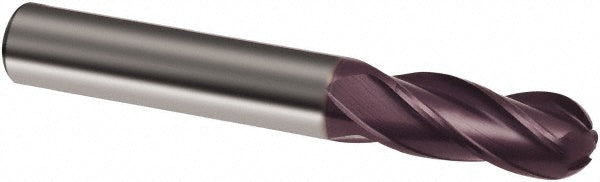

The Guhring 9031650071400 is a 9/32 4-flute Solid Carbide (Ultra Fine Grain) ball end mill with a FIREX finish for longer tool life. 13/16 length of cut, 2-1/2 overall length. Series 3165.

Specifications

ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length typeStandard
Material gradeUltra Fine Grain
Mill diameter in9/32
Mill diameter toleranceh10
Number of flutes4
Overall length in2-1/2
Shank diameter in9/32
Shank diameter toleranceh6
Single or double endSingle
Variable helixNo
Variable indexNo
