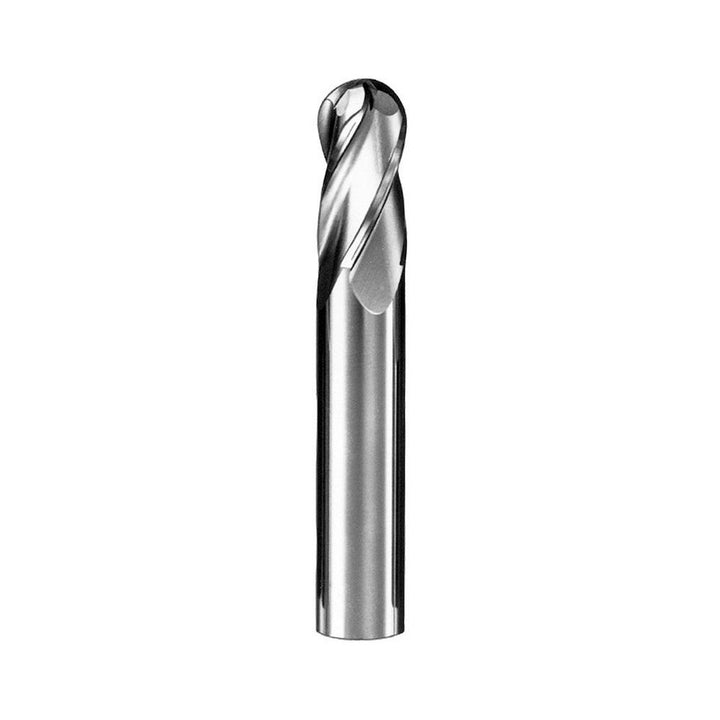

9/32" 4-Flute Solid Carbide Ball End Mill - SGS 30136

SGS

9/32" 4-Flute Solid Carbide Ball End Mill - SGS 30136

MFR# 30136Series 1B

$35.78List $45.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30136 is a 9/32 4-flute Solid Carbide (Micrograin) ball end mill. 3/4 length of cut, 2-1/2 overall length. Series 1B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in9/32
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS9/32" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31233 $60.95 SGS9/32" 4-Flute Solid Carbide Ball End Mill, TiN - SGS 31472 $60.95 SGS9/32" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 30048 $39.86 Guhring9/32" 4-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031650071400 $59.81
