Guhring

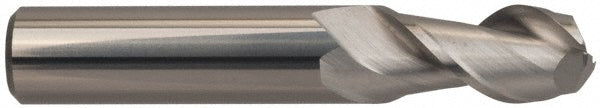

3/8" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031740095200
MFR# 9031740095200Series 3174
$65.94List $84.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Guhring 9031740095200 is a 3/8 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 7/8 length of cut, 2-1/2 overall length. Series 3174.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in7/8
Length typeRegular
Material gradeProprietary
Mill diameter in3/8
Mill diameter toleranceh10
Number of flutes2
Overall length in2-1/2
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
