3/8" 2-Flute Solid Carbide Square End Mill - OSG 70201416

OSG

3/8" 2-Flute Solid Carbide Square End Mill - OSG 70201416

MFR# 70201416Series 7020

$313.90List $395.59 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide

Description

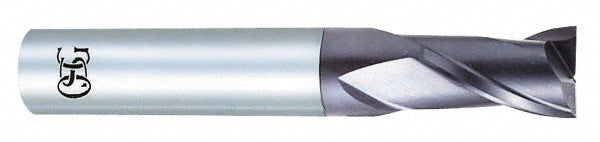

The OSG 70201416 is a 3/8 2-flute Solid Carbide (Micrograin) square end mill. 7/8 length of cut, 2-1/2 overall length. Series 7020.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Length typeStub
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.00/-0.02 mm
Number of flutes2
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Harvey Tool3/8" 2-Flute Solid Carbide Drill Mill End Mill - Harvey Tool 950524 $95.12 SGS3/8" 2-Flute Solid Carbide Square End Mill - SGS 35285 $46.57 RobbJack3/8" 2-Flute Solid Carbide Square End Mill - RobbJack C1-201-12 $78.66 RobbJack3/8" 2-Flute Solid Carbide Square End Mill - RobbJack NR-204-12 $84.40
