Guhring

1/4" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031780063500

MFR# 9031780063500Series 3178

$37.38List $47.94 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialSolid Carbide

CoatingBright/Uncoated

Description

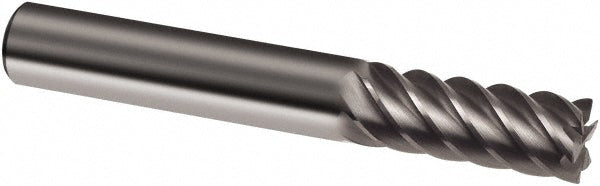

The Guhring 9031780063500 is a 1/4 6-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 3/4 length of cut, 2-1/2 overall length. Series 3178.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4

Length typeRegular

Material gradeProprietary

Mill diameter in1/4

Number of flutes6

Overall length in2-1/2

Shank diameter in1/4

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
