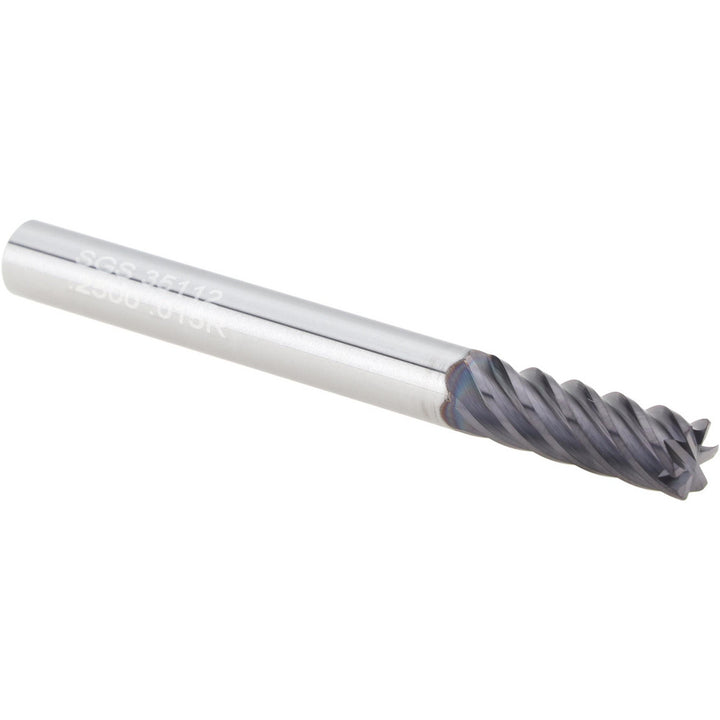

1/4" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35112

MFR# 35112Series 51CR

$48.54List $62.26 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialSolid Carbide

CoatingTX

Description

The SGS 35112 is a 1/4 6-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3/4 length of cut, 2-1/2 overall length. Series 51CR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0150

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in3/4

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in2-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
