Guhring

5/8" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031810158700

MFR# 9031810158700Series 3181

$244.07List $313.03 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes6

MaterialSolid Carbide

CoatingFIREX

Description

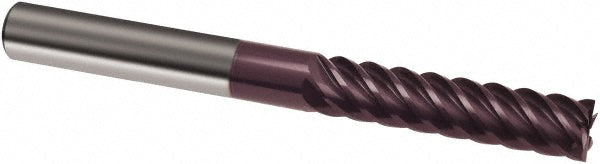

The Guhring 9031810158700 is a 5/8 6-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 2-1/4 length of cut, 5 overall length. Series 3181.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in2-1/4

Length typeLong

Material gradeProprietary

Maximum helix angle45

Mill diameter in5/8

Mill diameter toleranceh10

Number of flutes6

Overall length in5

Secondary workpiece materialHard Material

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
