Seco

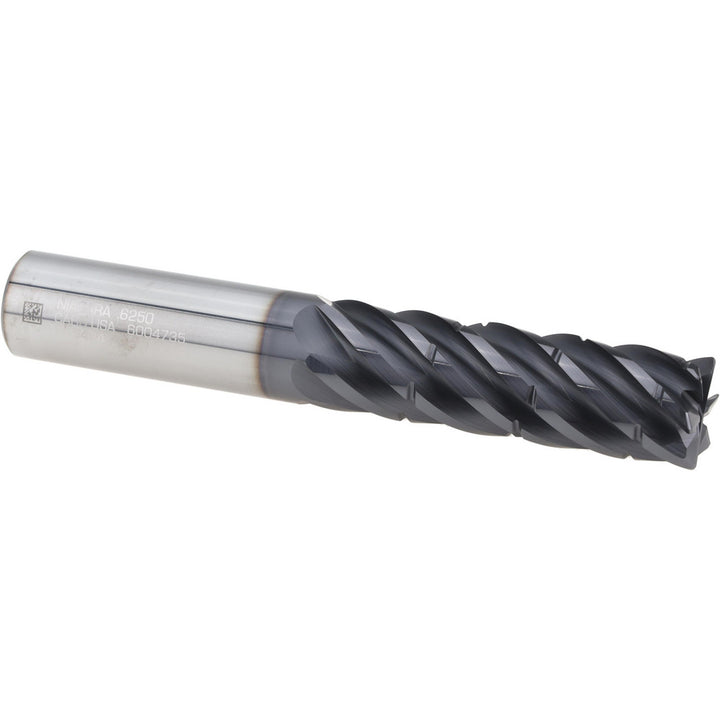

5/8" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03115976

MFR# 03115976Series SCS638R

$247.94List $318.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03115976 is a 5/8 6-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2 length of cut, 4 overall length. Series SCS638R.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in2

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in5/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in5/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
