Guhring

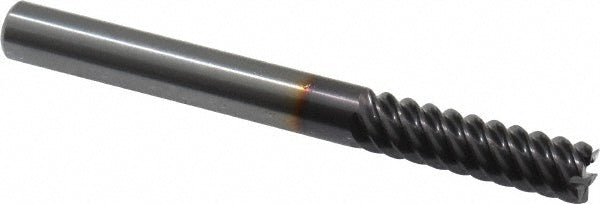

1/4" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031820063500

MFR# 9031820063500Series 3182

$49.15List $63.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031820063500 is a 1/4 6-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for hard material. 3/4 length of cut, 2-1/2 overall length. Series 3182.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle55

Length of cut in3/4

Length typeRegular

Material gradeProprietary

Mill diameter in1/4

Mill diameter toleranceh10

Number of flutes6

Overall length in2-1/2

Primary workpiece materialHard Material

Secondary workpiece materialCast Iron

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
