5/8" 4-Flute Solid Carbide Single End Mill, FIREX - Guhring 9031920158700

Guhring

5/8" 4-Flute Solid Carbide Single End Mill, FIREX - Guhring 9031920158700

MFR# 9031920158700Series 3192

$255.80List $328.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingFIREX

Description

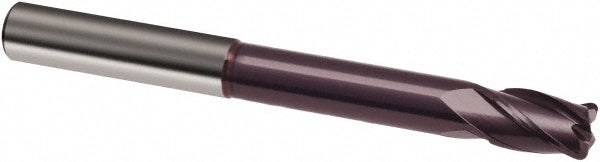

The Guhring 9031920158700 is a 5/8 4-flute Solid Carbide (Proprietary) single end mill with a FIREX finish for longer tool life. Suited for cast iron, hard material, steel. 5/8 length of cut, 5 overall length. Series 3192.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeLong
Material gradeProprietary
Mill diameter in5/8
Mill diameter toleranceh10
Number of flutes4
Overall length in5
Primary workpiece materialCast Iron; Hard Material; Steel
Reach length3.0000
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
