Guhring

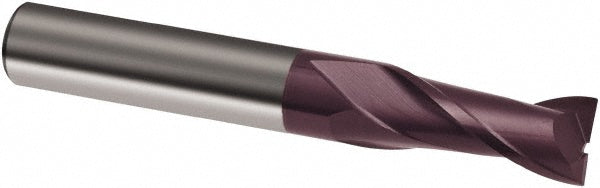

0.3937" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9036760100000
MFR# 9036760100000Series 3676
$96.02List $123.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9036760100000 is a 0.3937 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Series 3676.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.7480
Length typeRegular
Material gradeProprietary
Mill diameter0.3937
Mill diameter toleranceh10
Number of flutes2
Overall length (mm)72.00
Reach length (mm)32.00
Shank diameter0.3937
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
