Guhring

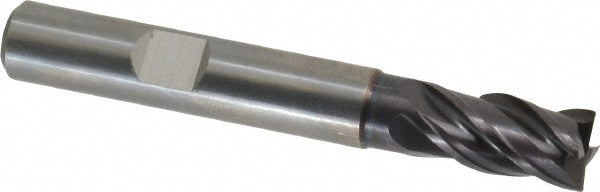

0.3150" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9037310080000

MFR# 9037310080000Series 3731

$47.57List $61.02 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9037310080000 is a 0.3150 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. Series 3731.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut0.4720

Length typeStub

Material gradeProprietary

Maximum helix angle38

Mill diameter0.3150

Mill diameter toleranceh10

Minimum helix angle35

Neck diameter (mm)7.70

Number of flutes4

Overall length (mm)58.00

Primary workpiece materialCast Iron; Steel

Reach length (mm)21.00

Secondary workpiece materialHard Material; Stainless Steel

Shank diameter0.3150

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
