0.3150" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP453-3150

OSG

0.3150" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP453-3150

MFR# HP453-3150Series HP453

$55.62List $71.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

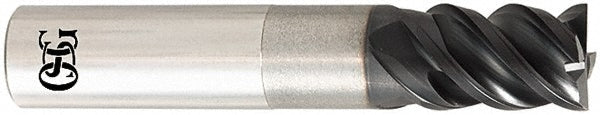

The OSG HP453-3150 is a 0.3150 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 0.4724 length of cut. Series HP453.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle50
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.3150
Number of flutes4
Overall length (mm)75
Shank diameter0.315
Variable helixNo
Variable indexNo
