Guhring

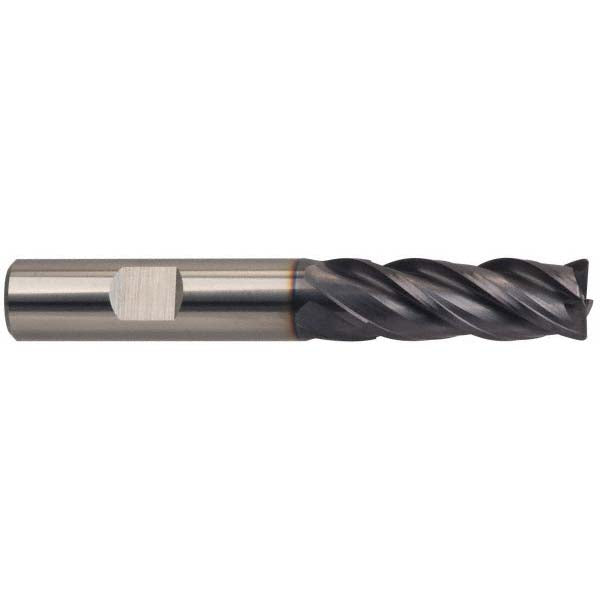

0.4720" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9037360120000
MFR# 9037360120000Series 3736
$112.92List $142.31
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9037360120000 is a 0.4720 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. Series 3736.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35; 38
Length of cut1.0240
Length typeRegular
Material gradeProprietary
Mill diameter0.4720
Mill diameter toleranceh10
Neck diameter (mm)11.50
Number of flutes4
Overall length (mm)83.00
Primary workpiece materialCast Iron; Steel
Reach length (mm)36.00
Secondary workpiece materialHard Material; Stainless Steel
Shank diameter0.4724
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
