Guhring

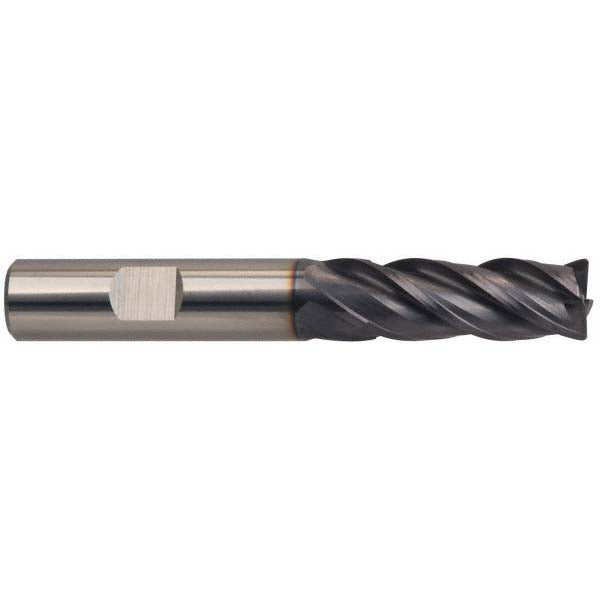

0.7087" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9037360180000

MFR# 9037360180000Series 3736

$257.03List $329.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9037360180000 is a 0.7087 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. Series 3736.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut1.2600

Length typeRegular

Material gradeProprietary

Mill diameter0.7087

Mill diameter toleranceh10

Neck diameter (mm)17.50

Number of flutes4

Overall length (mm)92.00

Primary workpiece materialCast Iron; Steel

Reach length (mm)42.00

Secondary workpiece materialHard Material; Stainless Steel

Shank diameter0.7087

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
