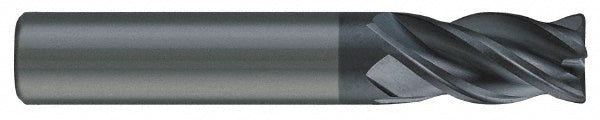

0.7087" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46372

SGS

0.7087" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46372

MFR# 46372Series Z1M

$268.79List $344.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 46372 is a 0.7087 4-flute Solid Carbide (Micrograin) square end mill. 1.2598 length of cut. Series Z1M.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.2598
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.7087
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)92.00
Shank diameter (mm)18.00
Shank diameter tolerance+0.000/-0.011 mm
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
