Guhring

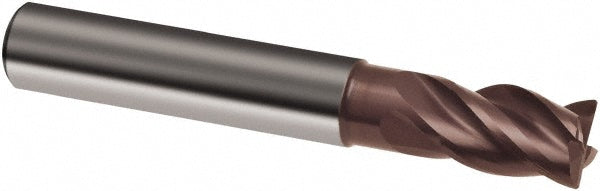

0.1575" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9038040040000
MFR# 9038040040000Series 3804
$51.01List $64.29
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Coatingnano-A
Description
The Guhring 9038040040000 is a 0.1575 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. Series 3804.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishnano-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle36; 38
Length of cut0.3150
Length typeStub
Material gradeProprietary
Mill diameter0.1575
Mill diameter toleranceh10
Neck diameter (mm)3.80
Number of flutes4
Overall length (mm)54.00
Primary workpiece materialStainless Steel; Steel
Reach length (mm)15.00
Secondary workpiece materialCast Iron
Shank diameter0.2362
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
