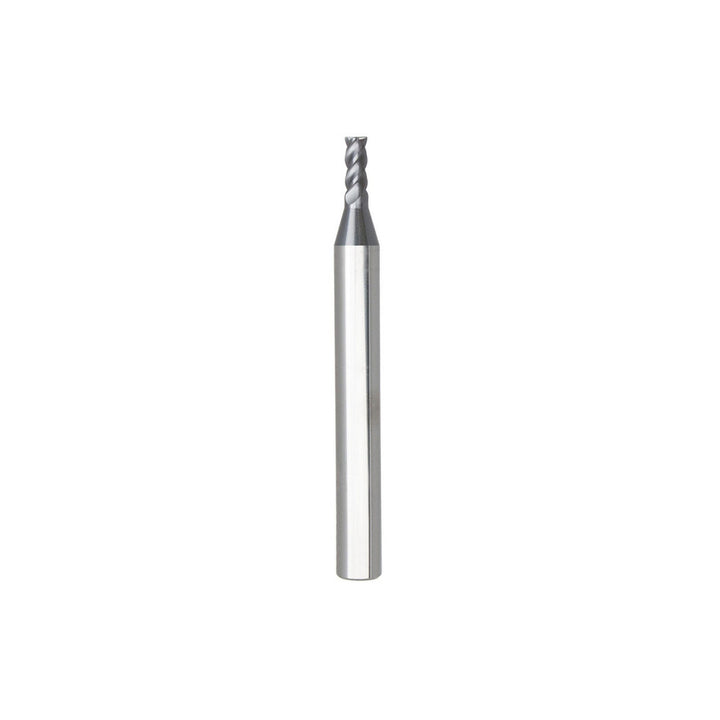

0.1575" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Seco 03083959

Seco

0.1575" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Seco 03083959

MFR# 03083959Series STR440M.2

$52.21List $65.80 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 03083959 is a 0.1575 4-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for hard material, stainless steel. Series STR440M.2.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut0.3150
Length typeStandard
Material gradeMicrograin
Mill diameter0.1575
Number of flutes4
Primary workpiece materialHard Material; Stainless Steel
Shank diameter0.2362
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixYes
Variable indexNo
