Guhring

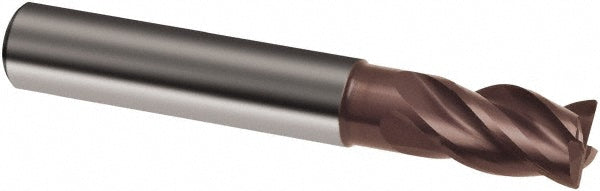

0.3150" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9038040080000

MFR# 9038040080000Series 3804

$68.91List $88.37 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

The Guhring 9038040080000 is a 0.3150 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. Series 3804.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnano-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Length of cut0.4724

Length typeStub

Material gradeProprietary

Mill diameter0.3150

Mill diameter toleranceh10

Neck diameter (mm)7.70

Number of flutes4

Overall length (mm)58.00

Primary workpiece materialStainless Steel; Steel

Reach length (mm)22.00

Secondary workpiece materialCast Iron

Shank diameter0.3150

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
