Guhring
3/8" 2-Flute PCD Tipped Corner Radius & Corner Chamfer End Mill - Guhring 9038670095200
MFR# 9038670095200Series 3867
$670.04List $859.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes2
MaterialPCD Tipped
Description

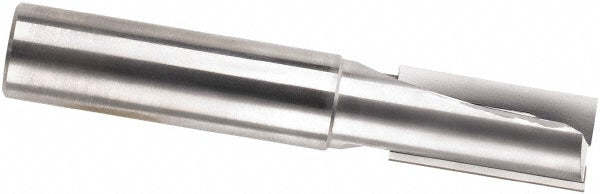

The Guhring 9038670095200 is a 3/8 2-flute PCD Tipped (Proprietary) corner radius & corner chamfer end mill. 3/4 length of cut, 3 overall length. Series 3867.
Specifications
CentercuttingYes
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialPCD Tipped
Extended reachNo
Flute directionRight Hand
Flute typeStraight
Helix angle0
Length of cut in3/4
Length typeRegular
Material gradeProprietary
Mill diameter in3/8
Mill diameter tolerancee10
Number of flutes2
Overall length in3
Reach length1.2500
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
