Guhring

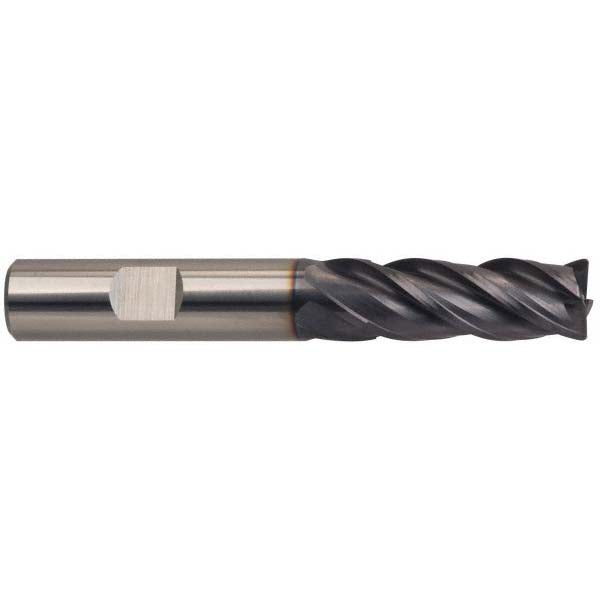

7/16" 4-Flute Solid Carbide Corner Radius End Mill, Super A - Guhring 9038760111140
MFR# 9038760111140Series 3876
$121.27List $155.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingSuper A
Description
The Guhring 9038760111140 is a 7/16 4-flute Solid Carbide corner radius end mill with a Super A finish for longer tool life. Suited for steel, cast iron, superalloys & titanium. 1 length of cut, 2-3/4 overall length. Series 3876.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishSuper A
Coolant throughNo
Corner radius0.0310
Corner radius tolerance-0.05 to 0.05 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in1
Length typeStandard
Material applicationSteel; Cast Iron; Superalloys & Titanium; Stainless Steel; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in7/16
Mill diameter toleranceh10
Number of flutes4
Overall length in2-3/4
PitchNormal
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialStainless Steel; Hard Material
Shank diameter in7/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
