Guhring

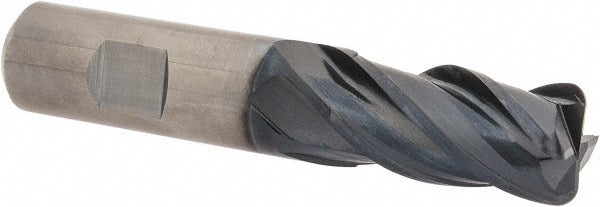

3/4" 4-Flute Solid Carbide Corner Radius End Mill, Super A - Guhring 9038760190590
MFR# 9038760190590Series 3876
$401.82List $515.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingSuper A
Description
The Guhring 9038760190590 is a 3/4 4-flute Solid Carbide corner radius end mill with a Super A finish for longer tool life. Suited for steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 4 overall length. Series 3876.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishSuper A
Coolant throughNo
Corner radius in1/8
Corner radius tolerance-0.05 to 0.05 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in1-1/2
Length typeStandard
Material applicationSteel; Cast Iron; Superalloys & Titanium; Stainless Steel; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter toleranceh10
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialStainless Steel; Hard Material
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
