Guhring

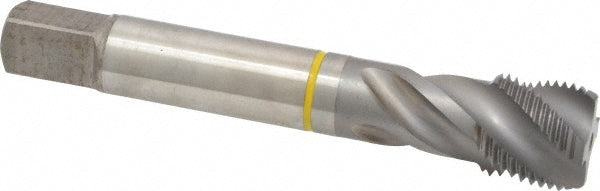

3/4-16 UNF Cobalt Tap - Guhring 9039050190500
MFR# 9039050190500Series 3905
$65.46List $83.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
Description
The Guhring 9039050190500 is a 3/4-16 UNF Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Number of flutes4
Overall length4.2520
OversizeNo
Shank diameter0.5900
Square size0.4420
Threads per inch16
Thread directionRight Hand
Thread size in3/4-16
Thread standardUNF
