Guhring

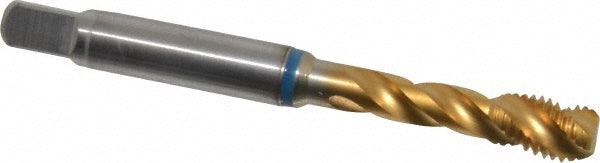

1/4-28 UNF Powdered Metal Tap, TIN - Guhring 9039110063500
MFR# 9039110063500Series 3911
$29.63List $38.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTIN
Description
The Guhring 9039110063500 is a 1/4-28 UNF Powdered Metal tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialPowdered Metal
Material applicationAerospace Alloy; Stainless Steel
Neck length1.1810
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size0.1910
Threads per inch28
Thread directionRight Hand
Thread limitH3; H4
Thread size in1/4-28
Thread standardUNF
