Guhring

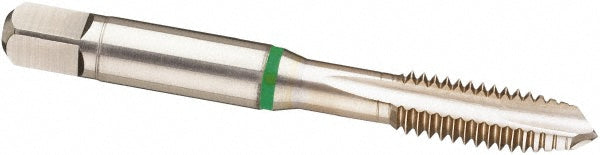

#5-40 UNC Cobalt Tap - Guhring 9039130031750
MFR# 9039130031750Series 3913
$21.20List $27.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
Description
The Guhring 9039130031750 is a #5-40 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length1.9410
OversizeNo
Shank diameter0.1410
Threads per inch40
Thread directionRight Hand
Thread limitH2/H3
Thread size in#5-40
Thread standardUNC
