Guhring

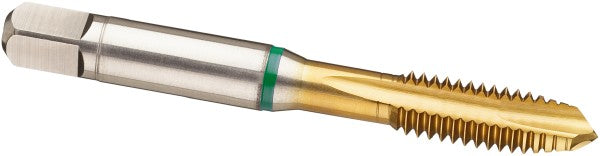

1-1/4-7 UNC Cobalt Tap, TiN - Guhring 9039160317500
MFR# 9039160317500Series 3916
$295.63List $372.56
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/4-7
CoatingTiN
Description
The Guhring 9039160317500 is a 1-1/4-7 UNC Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes4
Overall length5.7480
OversizeNo
Shank diameter1.0210
Threads per inch7
Thread directionRight Hand
Thread limitH6/H7
Thread size in1-1/4-7
Thread standardUNC
