Guhring
#10-24 UNC Cobalt Tap - Guhring 9039190048260
MFR# 9039190048260Series 3919
$24.79List $31.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
Description

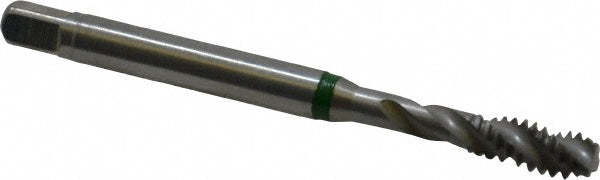

The Guhring 9039190048260 is a #10-24 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square size0.1520
Threads per inch24
Thread directionRight Hand
Thread length0.4330
Thread limitH3; H4
Thread size in#10-24
Thread standardUNC
