Guhring

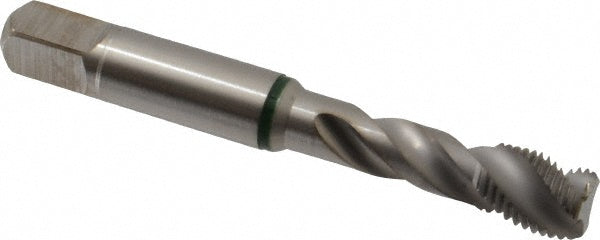

3/8-24 UNF Cobalt Tap - Guhring 9039200095250
MFR# 9039200095250Series 3920
$35.38List $45.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
Description
The Guhring 9039200095250 is a 3/8-24 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square size0.2860
Threads per inch24
Thread directionRight Hand
Thread length0.4530
Thread limitH3; H4
Thread size in3/8-24
Thread standardUNF
