Guhring
#12-28 UNF Cobalt Tap, TIN - Guhring 9039230054860
MFR# 9039230054860Series 3922
$29.63List $38.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#12-28
CoatingTIN
Description

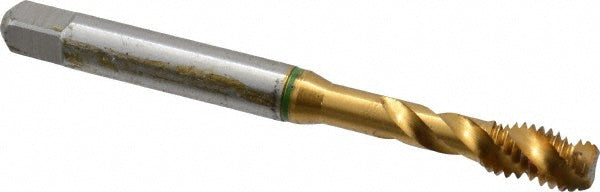

The Guhring 9039230054860 is a #12-28 UNF Cobalt tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.2200
Square size0.1650
Threads per inch28
Thread directionRight Hand
Thread length0.3740
Thread size in#12-28
Thread standardUNF
