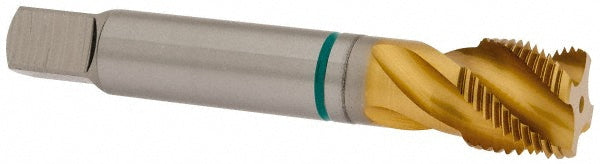

7/8-14 UNF Cobalt Tap, TIN - Guhring 9039230222250
MFR# 9039230222250Series 3923
$107.98List $138.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-14
CoatingTIN
Description
The Guhring 9039230222250 is a 7/8-14 UNF Cobalt tap with a TIN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes4
Overall length in4-11/16
OversizeNo
Shank diameter0.6970
Square size0.5230
Threads per inch14
Thread directionRight Hand
Thread length0.5230
Thread limitH6; H7
Thread size in7/8-14
Thread standardUNF
