Guhring

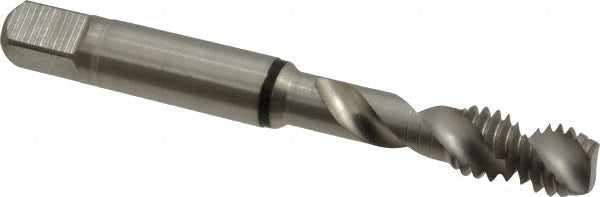

5/16-18 UNC Cobalt Tap - Guhring 9039310079380
MFR# 9039310079380Series 3931
$27.43List $35.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-18
Description
The Guhring 9039310079380 is a 5/16-18 UNC Cobalt tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Aluminum Alloy
Neck length1.3770
Number of flutes2
Overall length2.7200
OversizeNo
Shank diameter0.3180
Square size0.2380
Threads per inch18
Thread directionRight Hand
Thread limitH4; H5
Thread size in5/16-18
Thread standardUNC
