Guhring
#12-28 UNF Cobalt Tap - Guhring 9039320054860
MFR# 9039320054860Series 3932
$24.34List $31.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#12-28
Description

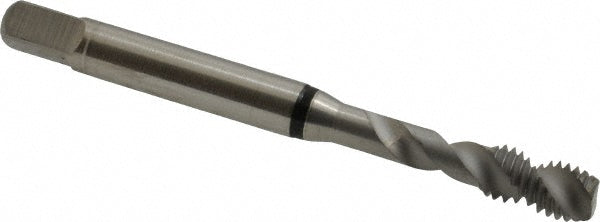

The Guhring 9039320054860 is a #12-28 UNF Cobalt tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Aluminum Alloy
Neck length1.0240
Number of flutes2
Overall length2.3820
OversizeNo
Shank diameter0.2200
Square size0.1650
Threads per inch28
Thread directionRight Hand
Thread limitH3; H4
Thread size in#12-28
Thread standardUNF
