Guhring

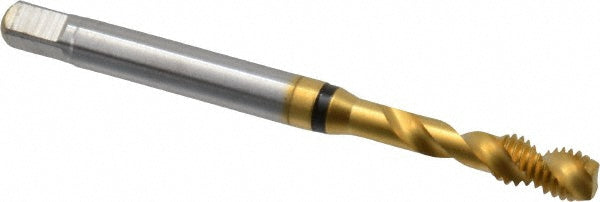

#10-32 UNF Cobalt Tap, TiN - Guhring 9039350048260
MFR# 9039350048260Series 3935
$26.52List $34.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingTiN
Description
The Guhring 9039350048260 is a #10-32 UNF Cobalt tap with a TiN finish. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Aluminum Alloy
Neck length0.9450
Number of flutes2
Overall length2.3820
OversizeNo
Shank diameter0.1940
Square size0.1520
Threads per inch32
Thread directionRight Hand
Thread limitH3; H4
Thread size in#10-32
Thread standardUNF
