Guhring

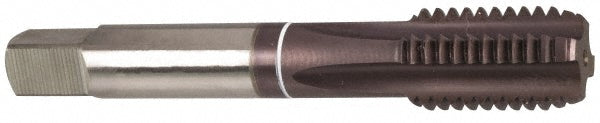

M8 x 1.25 Metric Coarse Cobalt Machine Tap, TiAlN - Guhring 9039360080000
MFR# 9039360080000Series 3936
$36.09List $46.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiAlN
Description
The Guhring 9039360080000 is a Metric Coarse Cobalt Machine tap with a TiAlN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishTiAlN
Coolant throughNo
MaterialCobalt
Material applicationAbrasive Material; Cast Iron
Number of flutes4
Overall length2.7200
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.3770
Tap typeMachine
Thread directionRight Hand
Thread limitD5; D6
Thread pitch (mm)1.25
Thread size (mm)M8 x 1.25
Thread standardMetric Coarse
