Guhring

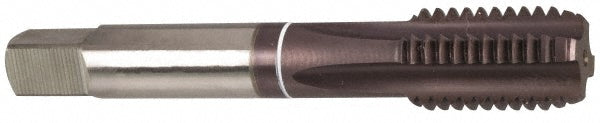

M14x2 Metric Coarse Cobalt Machine Tap, TiAlN - Guhring 9039360140000
MFR# 9039360140000Series 3936
$58.69List $75.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiAlN
Description
The Guhring 9039360140000 is a Metric Coarse Cobalt Machine tap with a TiAlN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishTiAlN
Coolant throughNo
MaterialCobalt
Material applicationAbrasive Material; Cast Iron
Number of flutes4
Overall length3.5910
OversizeNo
Shank diameter0.4290
Square size0.3220
Tap typeMachine
Thread directionRight Hand
Thread limitD6; D7
Thread pitch (mm)2.00
Thread size (mm)M14x2
Thread standardMetric Coarse
