Guhring

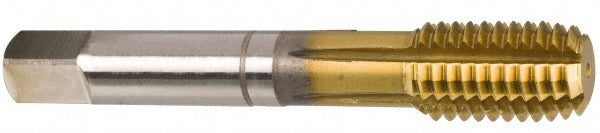

M3x0.5 Metric High-Speed Steel-E-CO Tap, TiN - Guhring 9039390030000
MFR# 9039390030000Series 3939
$30.50List $38.44
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039390030000 is a Metric High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length1.9410
Shank diameter0.1410
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.3937
Thread limitD5; D6
Thread size (mm)M3x0.5
Thread standardMetric
