Guhring

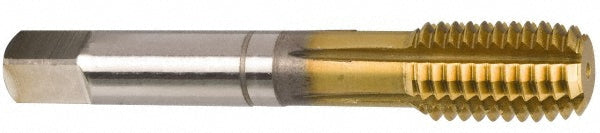

M5x0.8 Metric High-Speed Steel-E-CO Tap, TiN - Guhring 9039390050000
MFR# 9039390050000Series 3939
$31.03List $39.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039390050000 is a Metric High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.3820
Shank diameter0.1940
Square size0.1520
Tapping depth0.9449
Thread directionRight Hand
Thread length0.5512
Thread limitD7; D8
Thread size (mm)M5x0.8
Thread standardMetric
