Guhring
#6-40 UNF High-Speed Steel-E-CO Tap, TiN - Guhring 9039410035050
MFR# 9039410035050Series 3941
$29.11List $37.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#6-40
CoatingTiN
Description

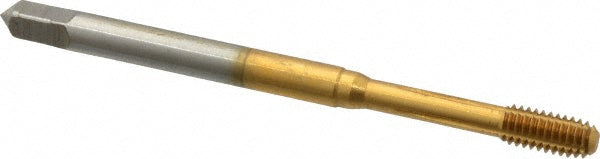

The Guhring 9039410035050 is a #6-40 UNF High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length in2
Shank diameter0.1410
Square size0.1100
Tapping depth0.7480
Thread directionRight Hand
Thread length0.4724
Thread limitH5; H6
Thread size in#6-40
Thread standardUNF
