Guhring

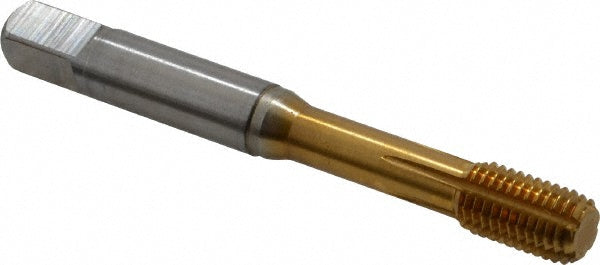

5/16-24 UNF High-Speed Steel-E-CO Tap, TiN - Guhring 9039410079380
MFR# 9039410079380Series 3941
$43.48List $54.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-24
CoatingTiN
Description
The Guhring 9039410079380 is a 5/16-24 UNF High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length2.7210
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Thread directionRight Hand
Thread length0.4331
Thread limitH7; H8
Thread size in5/16-24
Thread standardUNF
