Guhring

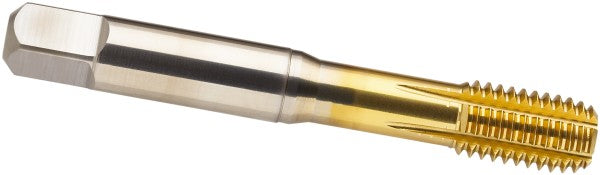

9/16-18 UNF High-Speed Steel-E-CO Tap, TiN - Guhring 9039410142880
MFR# 9039410142880Series 3941
$84.80List $108.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size9/16-18
CoatingTiN
Description
The Guhring 9039410142880 is a 9/16-18 UNF High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves6
Overall length3.5910
Shank diameter0.4290
Square size0.3220
Thread directionRight Hand
Thread length0.8661
Thread limitH8; H9
Thread size in9/16-18
Thread standardUNF
