Guhring
M10x1.5 Metric High-Speed Steel-E-CO Tap, TiCN - Guhring 9039420100000
MFR# 9039420100000Series 3942
$59.82List $76.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description

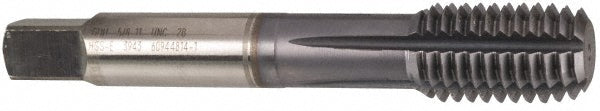

The Guhring 9039420100000 is a Metric High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length2.9410
Shank diameter0.3810
Square size0.2860
Tapping depth1.4567
Thread directionRight Hand
Thread length0.7874
Thread limitD10; D11
Thread size (mm)M10x1.5
Thread standardMetric
