Guhring
#5-40 UNC High-Speed Steel-E-CO Tap, TiCN - Guhring 9039430031750
MFR# 9039430031750Series 3943
$34.93List $44.01
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#5-40
CoatingTiCN
Description

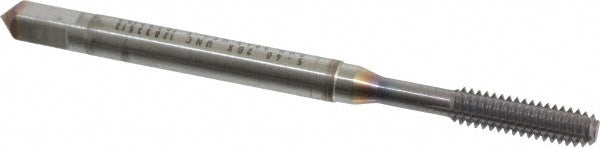

The Guhring 9039430031750 is a #5-40 UNC High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length1.9409
Shank diameter0.1410
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.4331
Thread limitH4; H5
Thread size in#5-40
Thread standardUNC
