Guhring
#12-24 UNC High-Speed Steel-E-CO Tap, TiCN - Guhring 9039430054860
MFR# 9039430054860Series 3943
$33.78List $43.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#12-24
CoatingTiCN
Description

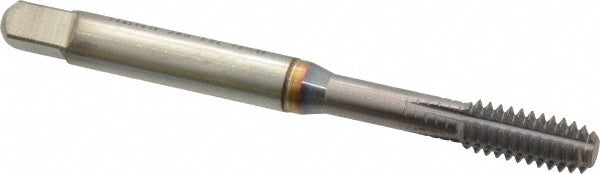

The Guhring 9039430054860 is a #12-24 UNC High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.3819
Shank diameter0.2200
Square size0.1650
Tapping depth1.0630
Thread directionRight Hand
Thread length0.6299
Thread limitH6; H7
Thread size in#12-24
Thread standardUNC
