Guhring

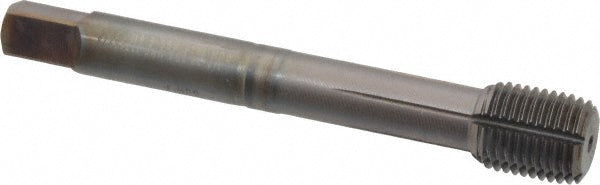

1/2-20 UNF High-Speed Steel-E-CO Tap, TiCN - Guhring 9039440127000
MFR# 9039440127000Series 3944
$87.71List $110.53
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-20
CoatingTiCN
Description
The Guhring 9039440127000 is a 1/2-20 UNF High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves6
Overall length3.3820
Shank diameter0.3670
Square size0.2750
Thread directionRight Hand
Thread length0.7874
Thread limitH8; H9
Thread size in1/2-20
Thread standardUNF
